| Vehicle technical parameters | |||

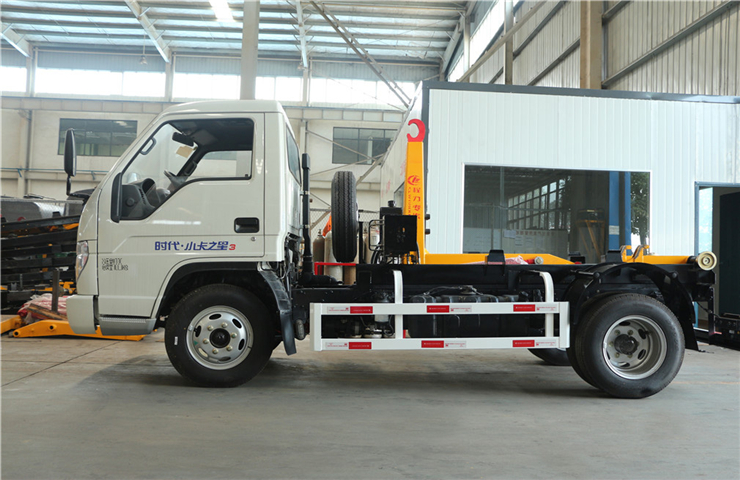

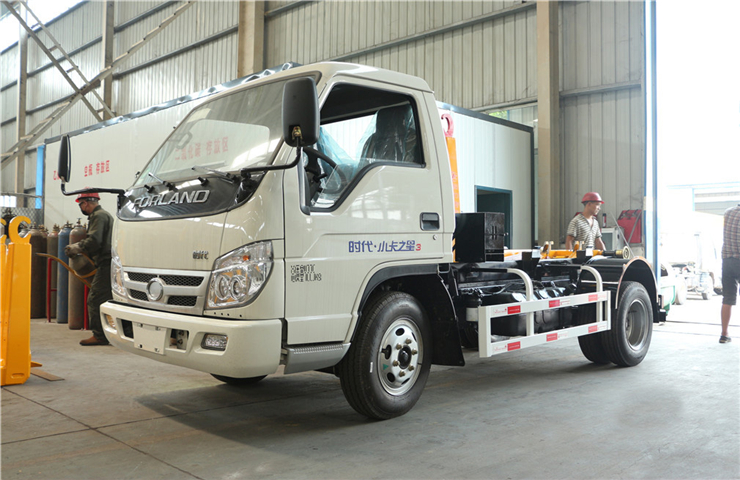

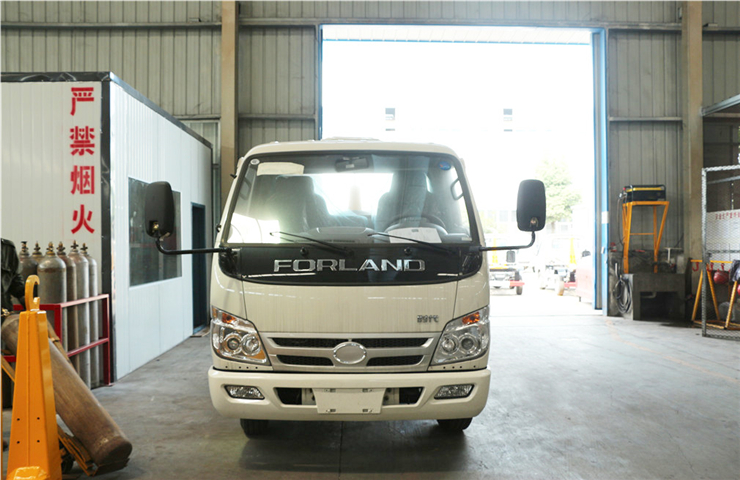

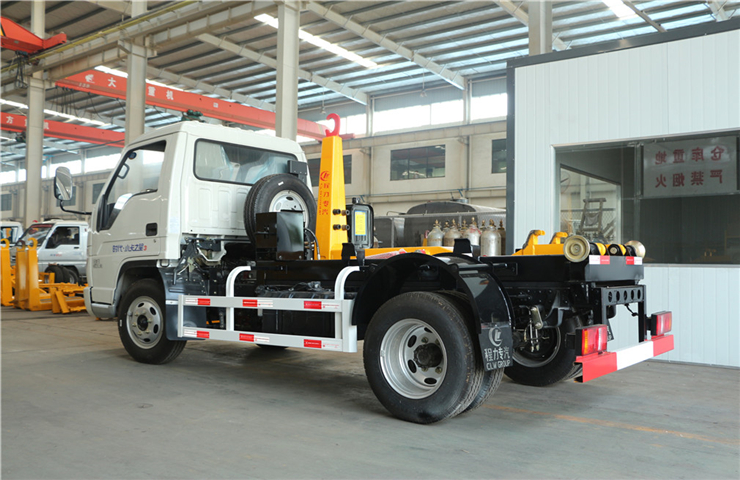

| Vehicle name: | CLW5040ZXXB5 compartment detachable garbage truck | Announcement batch: | 296 |
| Product trademark | Chengliwei brand | Product ID | |
| Vehicle model: | CLW5040ZXXB5 | Catalog number: | (17)74 |
| Inspection-free: | release date: | 20170601 | |
| total mass | 4395(Kg) | Volume: | |
| Rated contained mass | 1855,1495(Kg) | curb weight | 2410,2770(Kg) |
| Dimensions | 4800×1870×2120,2540(mm) | Cargo compartment size | ××(mm) |
| Rated passenger capacity | (people) | Total mass of quasi-trailer | (kg) |
| Cab: | Front seat passenger: | 2 people) | |
| Anti-lock braking system: | have | Load capacity utilization factor | |
| Fuel type: | diesel fuel | Emission Standards: | GB17691-2005 National V, GB3847-2005 |
| Approach / departure angle: | 23/28(°) | Front suspension/rear suspension: | 1100/850(mm) |
| Number of axes: | 2 | Wheelbase: | 2850(mm) |
| Number of tires: | 6 | Tire specifications: | 6.50-16LT,6.50R16LT |
| Front wheelbase (mm): | 1415,1475 | Rear wheelbase (mm): | 1435 |
| Axle load: | 1670/2725 | Maximum speed: | 105(km/h) |
| other | 1. The height of the vehicle without the optional air deflector is (mm): 2120. 2. Protection material: Q235A carbon steel, connection method: the left and right side protection and sub-beams are all welded, and the rear lower protection and the frame are connected by welding. Welded connection, rear protection section size (mm): 120×50, rear protection height from the ground (mm): 410. 3. The ABS system controller model is CM4YL (4 channels and 4 wheels individually controlled), ABS system controller The manufacturer is Guangzhou Kemi Automotive Electronic Control Technology Co., Ltd. 4. The text spraying position and vehicle color can be changed. 5. Correspondence between engine and fuel consumption (L/km): 4A2-88C50/11.55. | ||
| Chassis BJ1046V9JB5-F1 technical parameters | |||
| Chassis model | BJ1046V9JB5-F1 | Chassis company: | Beiqi Foton Motor Co., Ltd. |
| Number of tires | 6 | Number of spring leaves: | 7/7+5 |
| Tire specifications: | 6.50-16LT,6.50R16LT | Steering Type: | steering wheel |
| Front track: | 1415,1475 | Rear wheelbase: | 1435 |
| Chassis emission standards: | GB17691-2005 National V, GB3847-2005 | ||
| Fuel type: | diesel fuel | batch: | 294 |
| engine model | Engine manufacturer | Displacement (ml) | Power(kw) |
| 4A2-88C50 D19TCIE1 |
Anhui Quanchai Power Co., Ltd. Kunming Yunnei Power Co., Ltd. |
2270 1912 |
65 75 |
| Logo company: | Changzhou Huarisheng Reflective Material Co., Ltd., Changzhou Huawei Reflective Material Co., Ltd. | Vin vehicle identification code: | LVBV3JBB××××××××× LVBV3JAB××××××××× |
